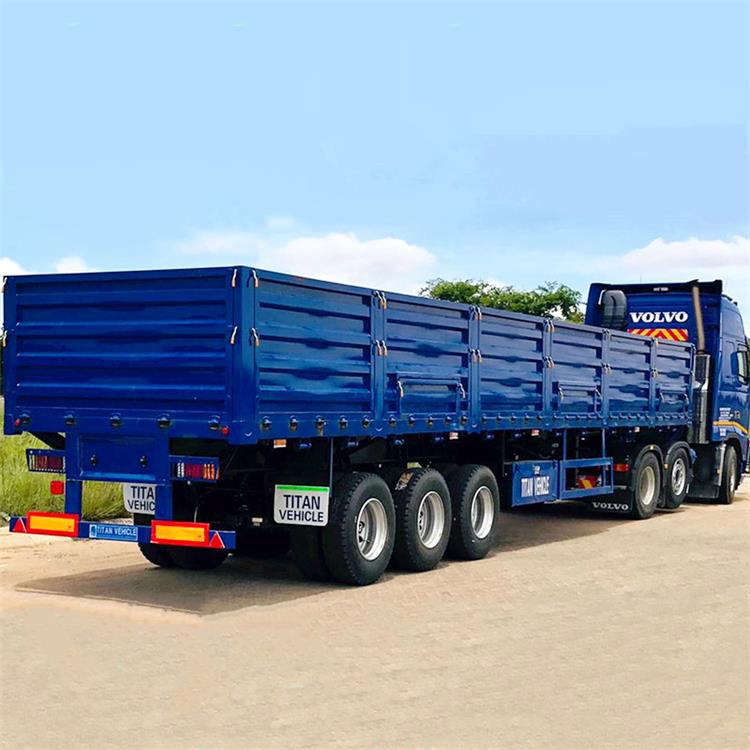

Grain Transport Trailer

Product Description:

Grain transport trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as different types of flatbed trailersfuel trailer capacitygrain. These trailers are used extensively 18 wheeler truck fuel tank capacityaluminum trailer bedthroughout the Africa to transport agricultural productsemi truck weight limit in usacontainer with trailers as well as any other commodity thaa semi trailersemi manufacturert can be hauled in bulk and loadecommercial truck servicelow semi truckd and unloaded through the trailer.

The small door of the sidewall semi trailer facilitates the loading anfuel capacity of semi trucksemi truck with truck bedd unloading of grain.

Sidewall semi trailer with small door feedback from Zimbabwe customer

Sidewall Semi Trailer with Small Door for Grain Transport for Sale in Madagascar

Specifications:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Tongya Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 truck containercommercial truck fuel tank(specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 invan in truckinggasoline tanker capacitych (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Boa and a truck and trailertrailer widettom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size cheavy truck and trailer partstanker trailer partsan be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface isflatbed trailer weight limitoil truck delivery available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages:

1. Tongya Vehicle adopts high strength steel material to manufacture the side waweight of a semi trailersemi truck flatbed trailerll semi trailer, it can make the sidewall trailer have a higher loading capacity and18 wheeler truck fuel tank capacitytrailer vehicle a longer service life.

2. Tongya Vehicle uses automatic oil tanker trucklowboy trailer weight capacityarc-submerging welding method to weld the main beam, so the all trailersloading semi trailersmain beam is more stronger and more durable.

3. Hight quality side wall, make sure the stable and safety of the loads.

4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like commercial truck & trailer partscontainer on flatbedthe bags, or long stuff.

5. To make sure the service life of the side walhowo trailer truckheavy duty truck trailerl semi trailers, all the spare parflatbed trailer delivery servicetrailer vehiclets we adopt are world famous brand.
