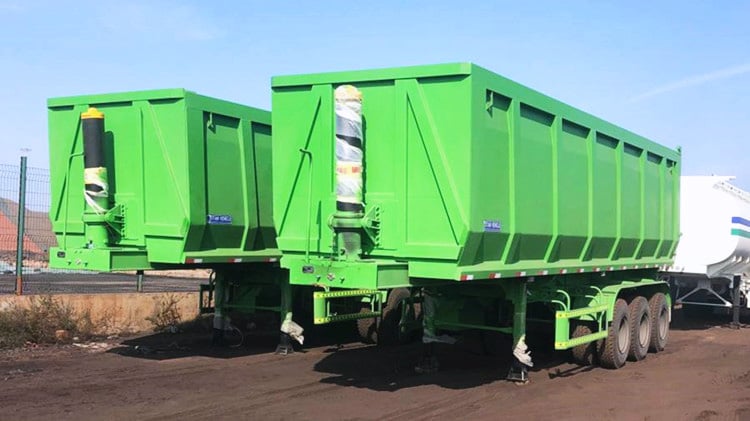

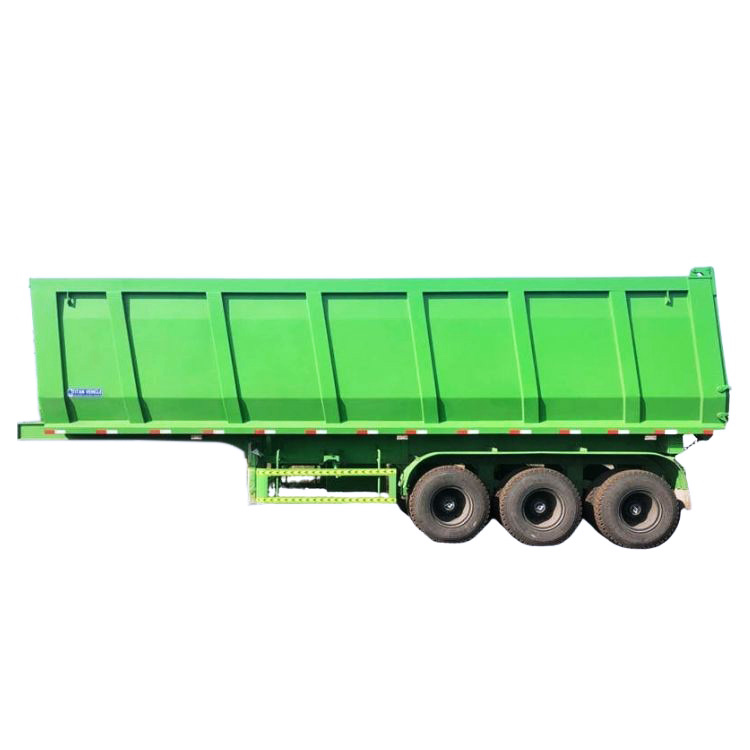

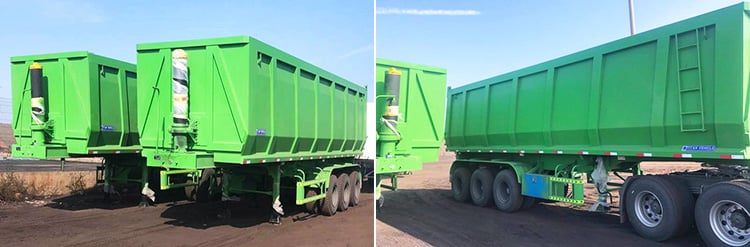

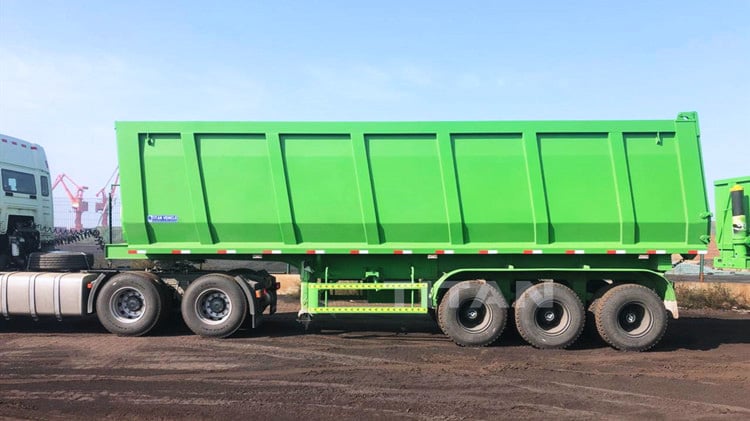

Tri Axle 40T Rear Dump Truck Trailer

Product Description：

Tongya adopts duble-plate main beam for Tri Axle 40T Rear Dump Truck Trailer;the main beam is designed with double pltruck trailer componentssemi truck for salesates, which have stronger carrying capacity and not easy to be damaged.

The heavy-duty cylinder of the Tri Axle 40T Rear Dump Truck Trailer with a wider hard cover trailerfactory trailersdiameter, stronger lifting capacity and higher heighflatbed trailer wallsmanufacturer of truckst, which makes the lifting more stable and does not easy to roll over.

Specification:

Dimension: 11000mmx2500mm x4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 40 ton

End plate: 8mm

Lifting System: Full set of HYVA liftrailer factorylarge semi trucksting cylinder

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thicknsemi truck trailer partstransporting new semi trucksess)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi dump trailers, as well astrailer semi trailertank on trailer the process, testing, packaging and ctrailers 2flat bed vehiclesustomer feedback, etc.

Please click " Tongya Dump Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
