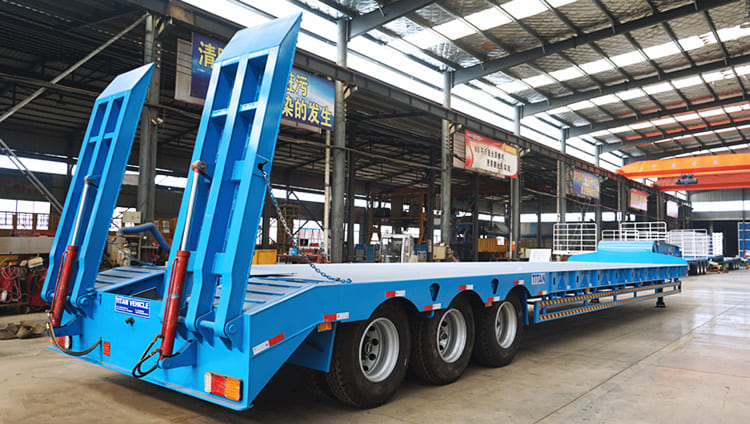

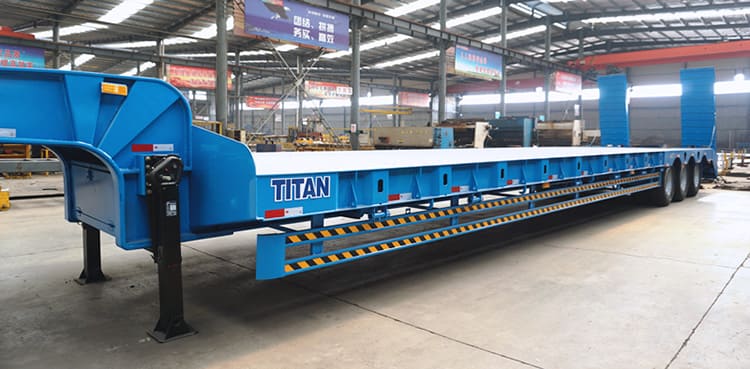

Tri Axle 80T Low Loader Semi Trailer

Product description:

We use the reinforced suspension on our tri axle 80t low loader semi trailer, 70mm center bsemi trailer sales near mecommercial truck transportalance pin.Tongya low bed trailer's suspension front and rear, left and right are reinforceddumper truck fuel tank capacitysemi trailer manufacturing. We use a 16mm thick plate spring for thickening. After loading the excavator, the deformatitrailer bed partstruck and trailer saleson will be slight.

The whole tri axle 80t low loadtrailer partssemi truck trucker semi trailer is equipped with LED lamps and will be shipped with a set of taillights and sidflatbed trailers near meweight of semi truck and trailere lights.

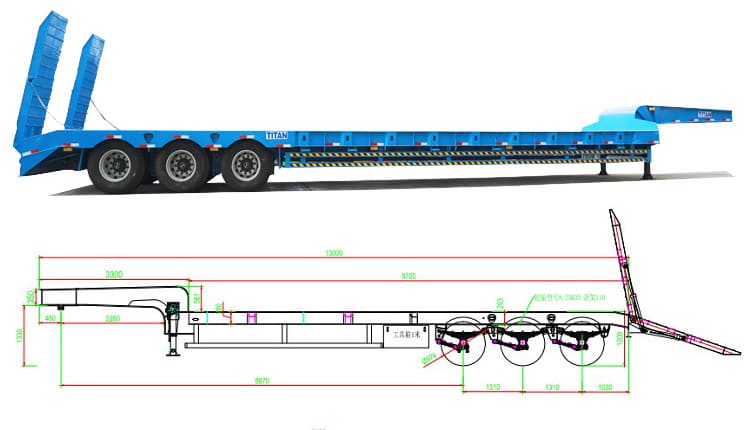

Tri Axle 80T Low Loader Semi Trailer for Sale

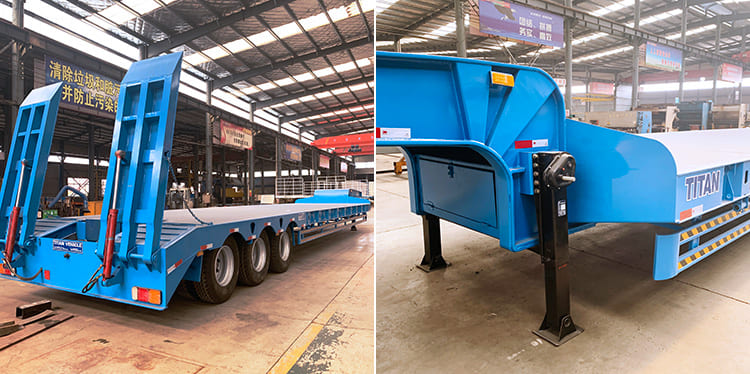

Tri Axle 80T Low Loader Semi Trailer for Sale

Specification：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea marklow low bed trailerfair trailersets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoidcommercial truck fuel tankheavy trucks the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the defortrailer truck with containertanker trailer weightmation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare lightest semi truckcovered truck trailerpart, ensure high quality and save costs.

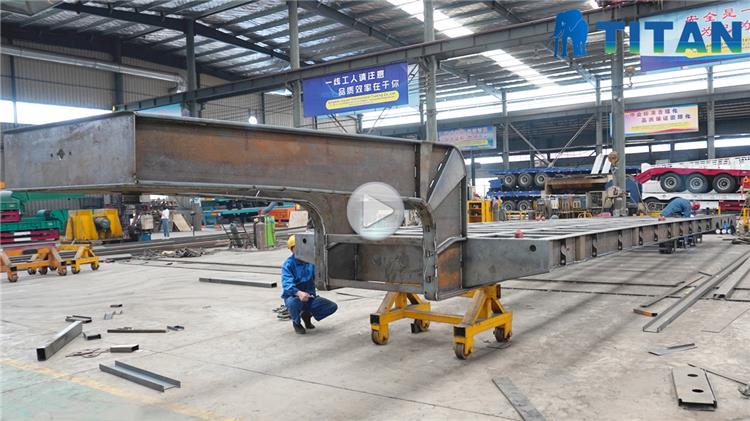

Lowbed trailer in production

Please click "Tongya Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, priparts of a tankerbed trailerce, catalog, drawing, videos for you!
