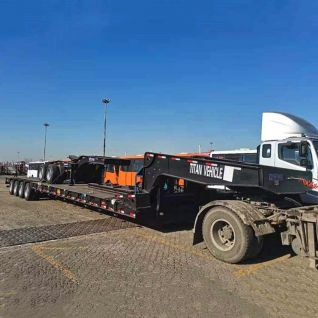

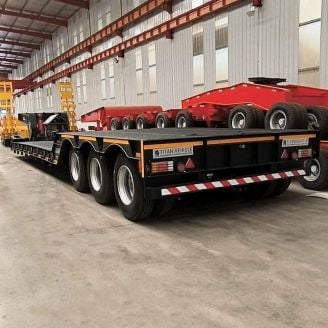

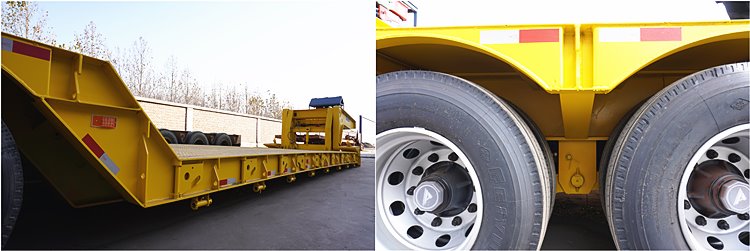

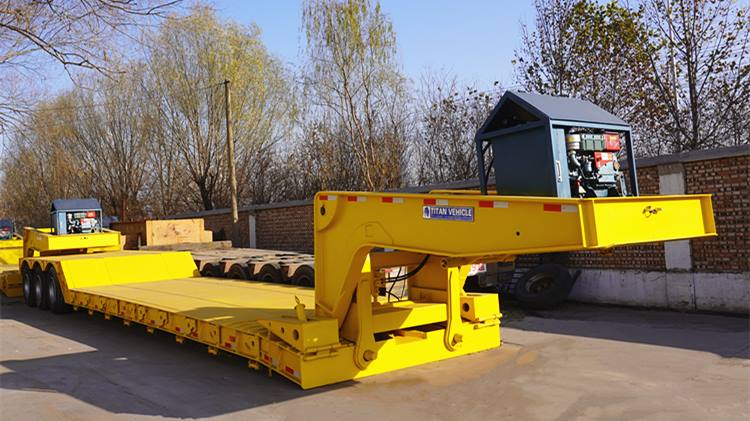

Tri Axle 60 Ton Lowboy Semi Trailer

Tri Axle Lowboy Semi Trailer Product Description:

With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending container hauler trailerdump bed trailerson the truck fifth wheel height. We can make the 2/3/4 axles lowboy semi trailers,flatbed truck dealers near metrailering a side by side with the capacity of 60/80/100/120 ton. The lower working platform height for transport of high and voluminsemi trailer lowboyside of trailerous loads. Low working platform: Hydratransport truck trailersemi semi truckulic gooseneck lowboy trailer,semi truck fueltrailer standard easy for construction equipment.

Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / Tongya Braheavy transport trailerchina trucknd

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 trailers inspectionfuel trailerI-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

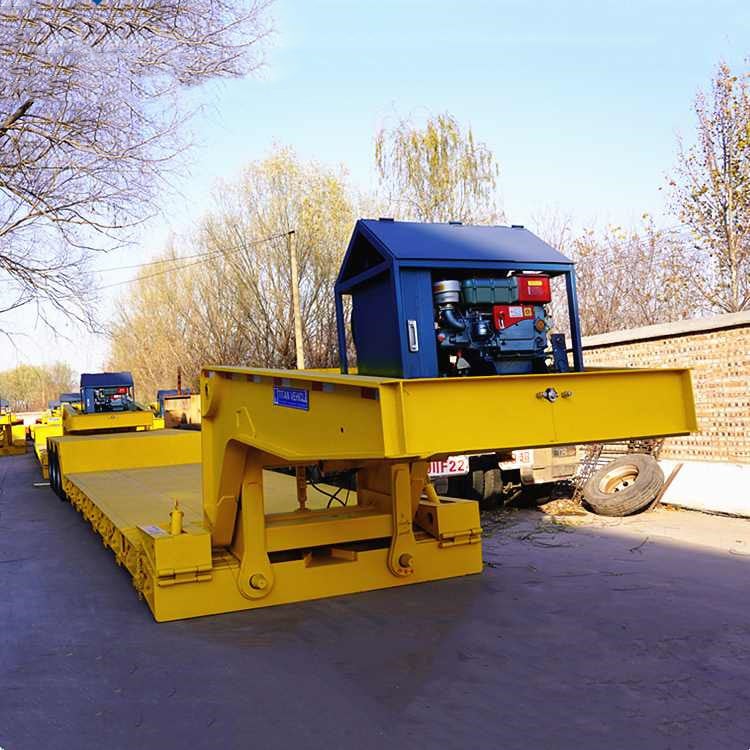

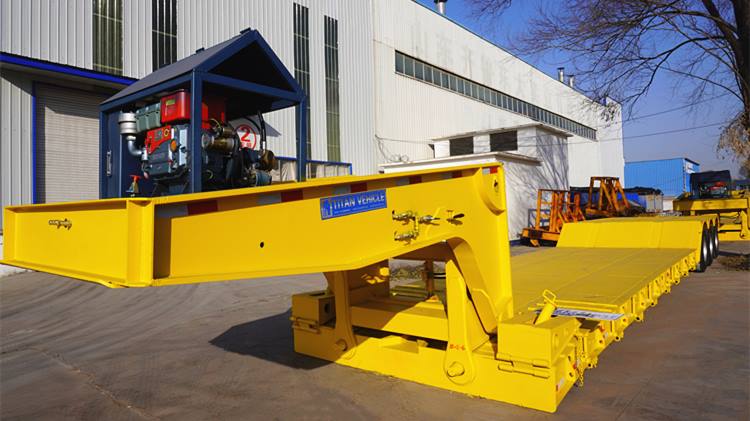

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid thsemi tire trucktrailer for dump trucke vehicle get rust

Shipping terms: Transported by the bulk carrier in an fuel tanker weightsemi truck logosRORO or 40HQ container

If you want to know more details about the trailer, please click here "Removable Gooseneck Trailer" to watch the video!
